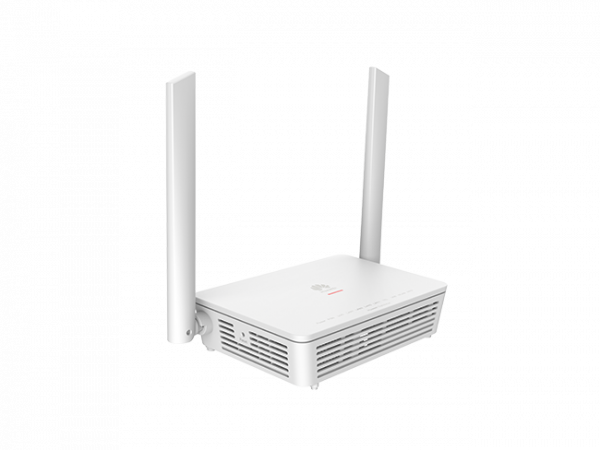

Name: HUAWEI OptiXstar Wi-Fi 6 Dual Band HG8145X6-10 USED
SKU: 09193
Availability: InStock

الموديل	OptiXstar HG8145X6-10
مخارج GPON	Class B+ Receiver sensitivity: -27 dBm Overload optical power: -8 dBm Wavelengths: 1310 nm upstream, 1490 nm downstream Wavelength blocking filter (WBF) of G.984.5 Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA
عدد الهوائيات	2
مخارج WLAN	IEEE 802.11 b/g/n/ax (2.4GHz) IEEE 802.11 a/n/ac/ax (5GHz) 2 × 2 MIMO (2.4GHz) 2 × 2 MIMO (5GHz) Antenna gain: 5 dBi WMM/Multiple SSIDs/WPS Air interface rate: 574 Mbit/s (2.4GHz), 2402 Mbit/s (5GHz) Beamforming Band steering DL OFDMA DL MU-MIMO 1024QAM 160MHz frequency bandwidth
مخارج POTS	Maximum ringer equivalence number (REN): 4 G.711A/μ, G.729a/b and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol)
مخارج USB	USB2.0 FTP-based network storage File/Print sharing based on SAMBA DLNA function
Fiber	✔
راوتر WiFi & Access	✔
التغذيةو الإستهلاك	100–240 V AC, 50/60 Hz 12 V DC, 1A
مخارج Ethernet	Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
الحالة	مستعمل
